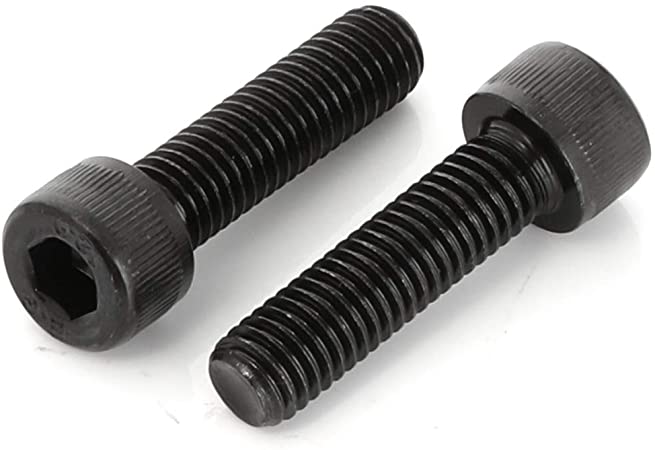

SOCKET HEAD CAP SCREW

SOCKET HEAD CAP SCREW

Prodduct Details
Product Name
Tensile Strength
Property Class
Psi. Min. N/mm2
Size Range
Diameter Length
Metric Inch Metric Inch
Equivalent Standards
IS ISO DIN BS ANSI JIS
SOCKET HEAD CAP SCREW (Also known as - ALLEN HEAD SCREW/ ALLEN BOLT/ALLEN SCREW)
190000 1300
(12.9)
M3 to M42 1/8" to 1" 5 to 300 3/8" to 1"
2269 4762 912 4168 B18.3.1M B1176
Metric Inch
Specifications : Generally conforming to IS 2269, DIN 912, ISO 4762 Specifications : Generally conforming to BS 2470
Threads : ISO Metric (Coarse Series) 4g6g as per IS 4218, ISO 261, ISO 965. Threads : BS Whitworth Fine, Medium as per BS 84.
Material : Unbrako high grade alloy steel. Mechanical Properties : As per BS 2470
Mechanical Properties : Property Class 12.9 as per IS 1367, ISO 898 Part I Note : Upto 4 Inch Dia can be manufactured against request.
Note : Upto 80mm Diameter can be manufactured against request.
Products can be supplied with Hot Dip Galvanized and Electro Galvanized Plating. Prices available on request.
