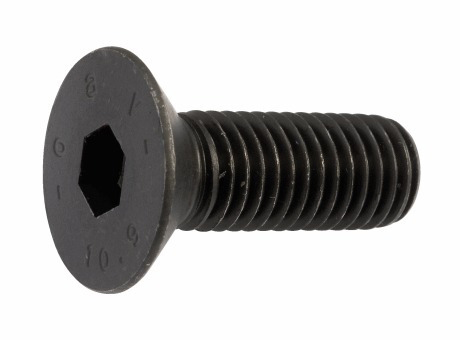

SOCKET COUNTERSUNK HEAD SCRWS

SOCKET COUNTERSUNK HEAD SCRWS

Prodduct Details
Product Name
Tensile Strength
Property Class
Psi. Min. N/mm2
Size Range
Diameter Length
Metric Inch Metric Inch
Equivalent Standards
IS ISO DIN BS ANSI JIS
SOCKET COUNTERSUNK HEAD SCRWS
160000 1050
(12.9)
M3 to M24 1/16" to 5/16" 6 to 60 3/8" to 1.1/4"
6761 -- 7991 4168 B18.3.5M --
Metric Inch
Specifications : Generally conforming to IS 6761, ISO 10642 Specifications : ---
Threads : ISO Metric, 4g6g as per IS 4218. Threads :---
Material : UNBRAKO high grade alloy steel. Mechanical Properties :---
Mechanical Properties : Property Class 12.9 as per IS 1367, ISO 898 Part - l Note : ---
Note : All sizes are fully threaded.
Products can be supplied with Hot Dip Galvanized and Electro Galvanized Plating. Prices available on request. ---
